Ticker

Ticker

In this article, you will learn how to fire the ticker graphic like the below one in EvoFX broadcast graphics platform studio.


Before you begin

  1. To learn how to select a match in EvoFX studio, refer to this article.
  2. The ticker graphic can be activated like a lower third graphic. To learn, how to fire a lower third graphic in EvoFX studio, refer to this article.

Customizing the ticker

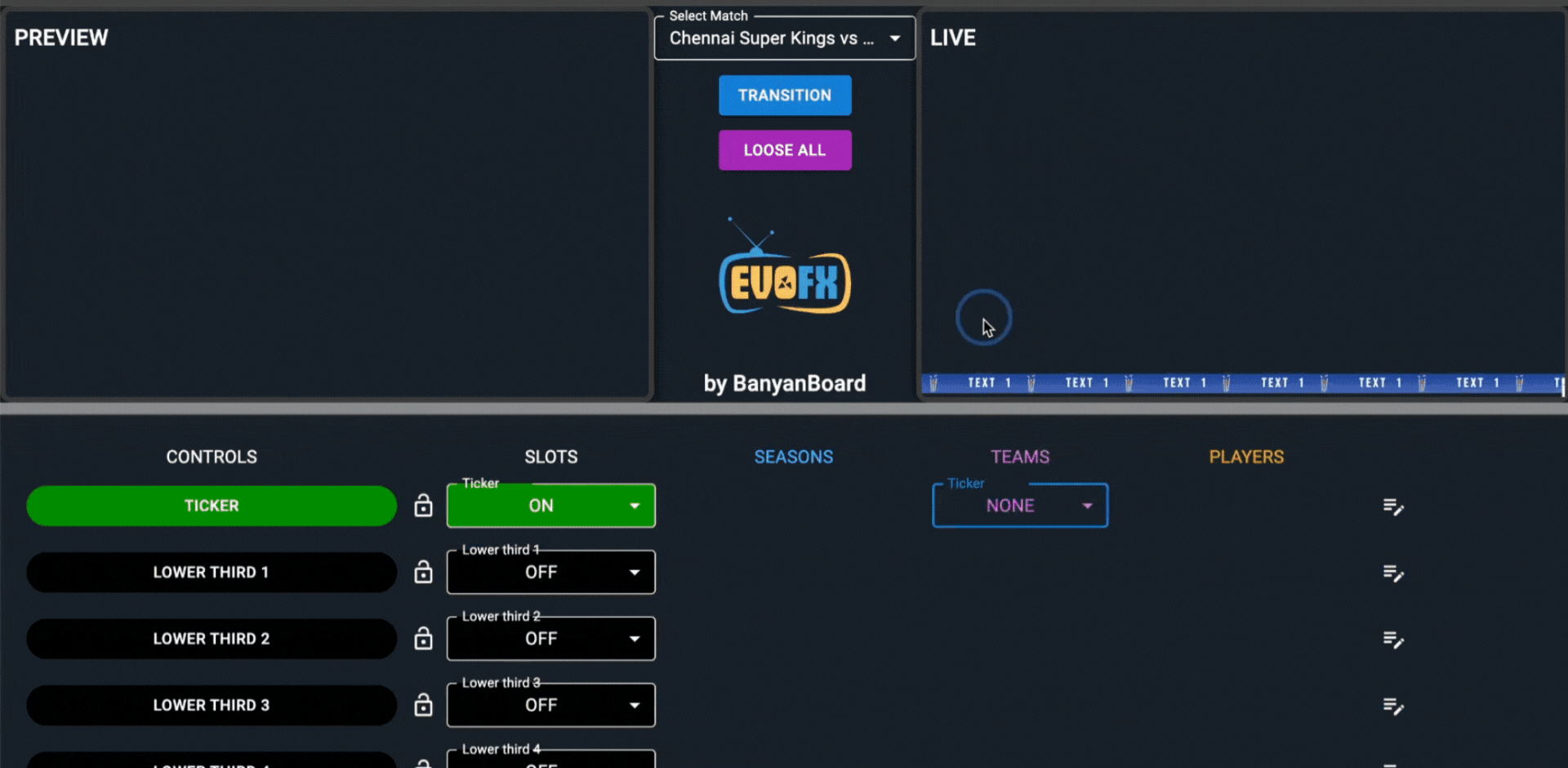

After activating the ticker graphic, you can customize the logo and text inside the ticker by following these steps:

1. Customize the ticker's logo:
  1. Click on the "TEAMS" dropdown button of the ticker graphic.
  2. This will display a list of team names.
  3. Select the desired team from the list by clicking on its name.
  4. Upon clicking, the team's logo will appear in the ticker.
2. Customize the ticker's text:
  1. Click on the settings button located on the right side of the page.
  2. This will open a dialog box named "Add Text Inputs for Ticker".
  3. Enter the desired text in the input field labeled "Text Input 1" in the dialog box.
  4. After entering the text, click the "CLOSE" button in the dialog box.
  5. The desired text will then appear as the text in the ticker.
